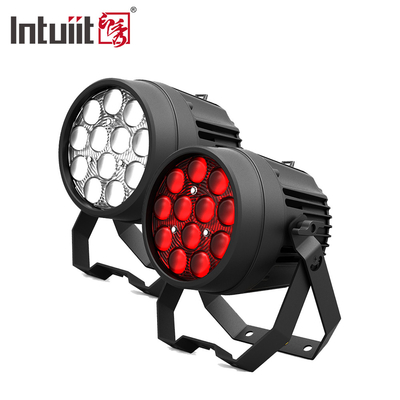

Aluminum Alloy Led Par 12x10W RGBW 4in1 Dmx 512 Light DJ Wash Stage Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | MYLED-116 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | LED |
|---|---|---|---|
| Lamp Power: | 120W | Input Voltage: | AC100V-240V |
| IP Rate: | IP20 | Warranty: | 1-year |
| LEDS: | 12 | LM: | 1915lm |
| Highlight: | Dmx 512 Aluminum Alloy Led Par,12x10W 4in1 Aluminum Alloy Led Par |
||
Product Description
The MYLED-116 is a high-quality LED zoom par stage light that offers various features and lighting effects. It is commonly used in events, concerts, theaters, and stages. Here are some key details about the MYLED-116:

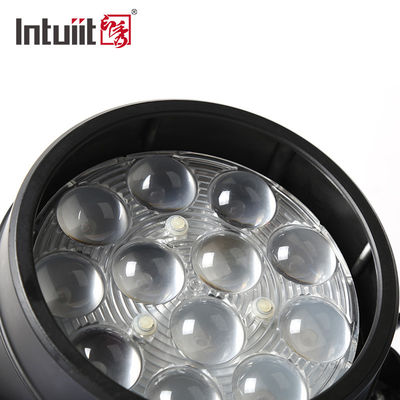

LED Configuration: The light consists of 12 pieces of 10W RGBW (Red, Green, Blue, White) 4-in-1 LEDs on the main PCB. Additionally, there are 12 pieces of SMD RGB LEDs for back lighting. This combination provides a rich and vibrant lighting effect.
Zoom Functionality: The MYLED-116 is equipped with a zoom lens that allows you to adjust the beam angle. The beam angle can be set anywhere between 5° to 55°, providing flexibility in the coverage area.

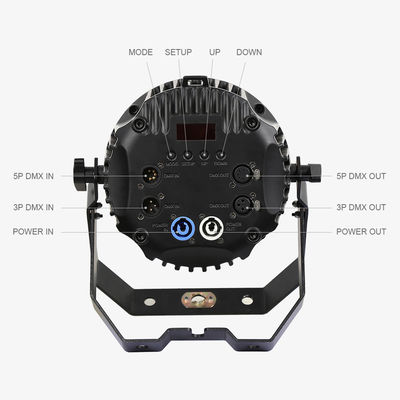

Lighting Control: The stage light supports DMX512 control, which is a widely used lighting control protocol. This enables you to integrate the light into a larger lighting setup and synchronize its operation with other DMX-compatible fixtures.
Dimming and Effects: The MYLED-116 offers 16-bit dimming capability, providing smooth and precise control over the brightness levels. This feature is particularly beneficial for theatrical applications where subtle lighting adjustments are required. The light also includes various built-in modes such as master/slave, sound-activated mode, auto running, and a built-in problem mode.
The MYLED-116 is designed to deliver high-quality lighting effects, versatility, and ease of control, making it suitable for a wide range of applications in the entertainment industry.
Specification
| Item | LED Zoom Par light, 12*4-in-1 RGBW 10W | ||||
| Item number | MYLED-116 | ||||
| Dimension | 200x260x285 mm | ||||
| Inner box | 255*280*330 MM | ||||
| Master box | 535*300*360 MM | ||||
| Qty | 2pcs/ctn | ||||
| N.W | 4.1 KG | ||||
| G.W | 4.6 KG | ||||
| Voltage | AC100V ～ 240V,60/50Hz | ||||
| Power consumption | 130W | 127W@110V | 126W@240V | ||
| Power linking | 4pcs@110V | 8pcs@240V | |||
| LED | 12pcs 4-in1 RGBW + 21pcs 3-in-1 RGB Background | ||||
| Dimming | 0-100%(16-bit) | ||||
| Beam Angle | 5°-60° | ||||
| Lumen | 1915lm | ||||
| DMX Channel | 14CHs | ||||

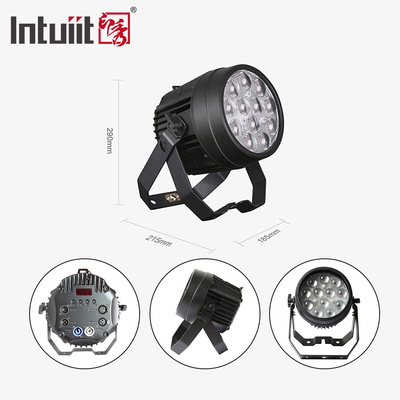

Dimension sheet:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
