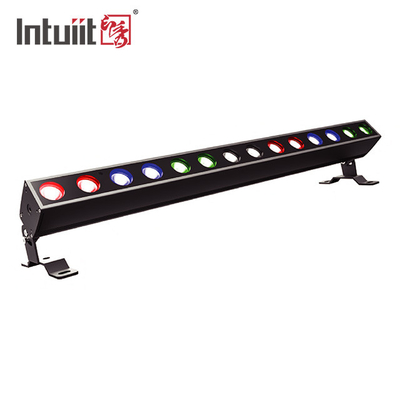

Stage Led DMX Light Bar 14x10W RGBW 4IN1 LED Wall Wash Light Strobe Wall Washer Bar For Church Party Dj Stage
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
| Highlight: | Dj Stage LED Wall Wash Light,14x10W LED Wall Wash Light,Dj LED Wall Wash Light |
||
Product Description
Key points :
- 1. It's an IP65 rated LED light bar designed for outdoor use, with a durable die-castaluminum housing.
2. It has 14 x 10W RGBW 4-in-1 LEDs for vibrant colors and excellent color mixing can present therainbow and flowing water effect.
3. It offers beam angle options of 20 degrees and 40 degrees for flexibility inlighting setups.
4. The light bar has pixel control capability for creating intricate lighting patterns.

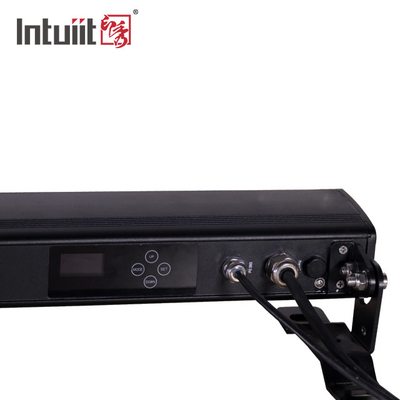

5. It has an OLED display and touch button controls for easy operation andadijustment.
6. The CT-002P provides 16-bit dimming for smooth and accurate control oflighting intensity.
7. With its IP65 rating, it's designed to withstand outdoor conditions, making it suitable for in rental company,studio,auditorium, bar, and other places, widely used in the footlight of stage performance, rim light of stage.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

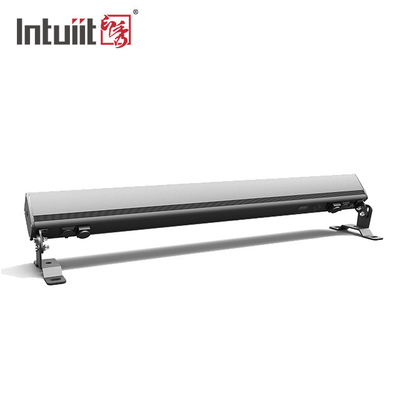

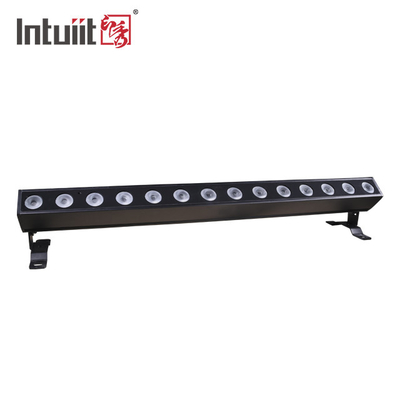

Appearance
Light Distribution Data

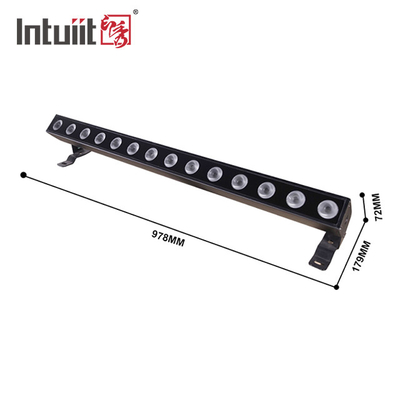

Product's Dimension
Installation Diagram
