36W DJ Light Bar LED Linear Bars Wall Washer RGBW Dynamic Outdoor LED Wall Washer Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE |
| Model Number: | IXQ17C |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiated |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per months |
|
Detail Information |
|||
| Type: | LED Architectural Lighting | Light Source: | LED |
|---|---|---|---|
| Input Voltage: | DC24V | Lamp Power: | 36W |
| IP Rated: | IP65 | Warranty: | 2 Years |
| Highlight: | RGBW LED Wall Washer Lights,36W LED Wall Washer Lights,Outdoor LED Wall Washer Lights |
||
Product Description
Key details about the LED architectural lighting products :DC24V 1M RGBW 36W DMX LED Wall Washer Light:
- Voltage: 24VDC
- Length: 1 meter
- LED Type: RGBW (4-in-1)
- Power: 36 watts
- Control Protocol: DMX
- Application: Outdoor facade lighting, building illumination
- Waterproof IP65 Outdoor LED Wall Washer 36W RGBW 4-in-1:
- Power: 36 watts
- LED Type: RGBW (4-in-1)
- Ingress Protection: IP65 (Waterproof)
- Application: Outdoor facade lighting, landscape lighting
- Professional Stage Lighting IP65 Outdoor Waterproof LED Bar Wash RGBW 4-in-1 16pcs 36W:
- Power: 36 watts
- LED Quantity: 16 pieces
- LED Type: RGBW (4-in-1)
- Ingress Protection: IP65 (Waterproof)
- Application: Outdoor stage/event lighting, architectural lighting
- IXQ17C Waterproof IP65 LED Wall Washer Light:
- Ingress Protection: IP65 (Waterproof)
- Control Protocol: DMX512, RDM
- Features: Compact size, lightweight, seamless stitching
- Application: Hotels, shopping malls, buildings, landscapes, municipal projects
All these products are designed for outdoor, architectural, and landscape lighting applications, providing various length options, color mixing capabilities, and weatherproof IP65 ratings. The DMX and RDM control protocols allow for advanced lighting programming and control.
1. Specification

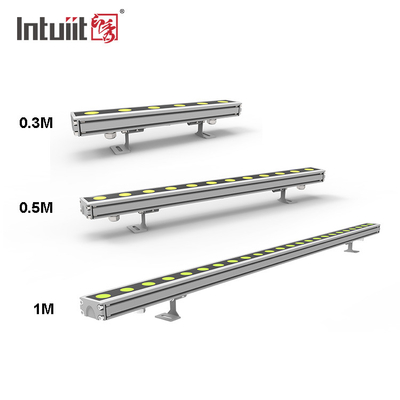

| Item Number | IXQ17C31(1M) IXQ17C39(0.5M) IXQ17C40(0.3M) |
IXQ17C16(1M) IXQ17C34(0.5M) IXQ17C33(0.3M) |
IXQ17C17(1M) IXQ17C35(0.5M) IXQ17C38(0.3M) |
IXQ17C20(1M) IXQ17C36(0.5M) IXQ17C29(0.3M) |
IXQ17C47(1M) |
| LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) | |||
| Beam Angle | 20°/30°/40°/20*40°Optional | ||||
| Spot Angle | 40°/50°/75°/45*75°Optional | ||||
| Lumen | 2260lm / 1116lm / 710lm | 1050lm / 650lm / 318lm | 1240lm / 610lm / 430lm | 1240lm | |
| CRI | Ra≥70 | / | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||
| Product Measurement | 1000*47*63MM(1M) / 510*47*63MM(0.5M) / 300*47*63MM(0.3M) | ||||
| N.W. | 1.9kg(1M) / 1.2kg(0.5M) / 0.8kg(0.3M) | ||||
| Input Voltage Range | DC24V | ||||
| Watts | 36W(1M) / 18W(0.5M) / 9W(0.3M) | ||||
| Power Factor | ＞0.9 | ||||
| Housing Material | Tensile Aluminum + die-cast aluminium | ||||
| Color | Matt black / Grey | ||||
| Cooling | Natural convection cooling | ||||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
| Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
| Channel | / | 4 / 6 / 7 / 16 CH | |||
| Power /Installation | Independent | ||||
| Conection | 2pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
| Power Linking | 5pcs(1m) / 8pcs(0.5m) / 12pcs(0.3m) | ||||
| DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
| Certification | CE,RoHS | ||||
| IP Grade | IP65 | ||||
Product optic
Product size

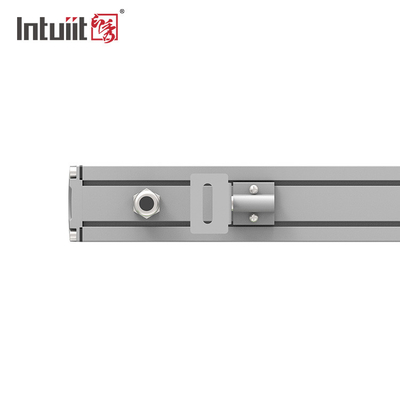

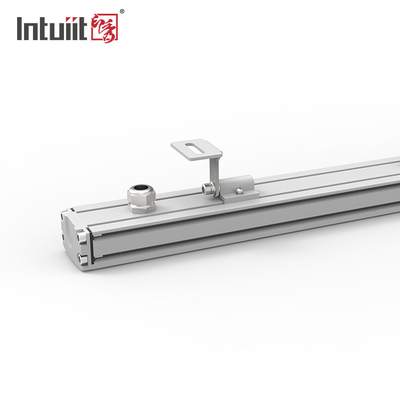

Product installation:

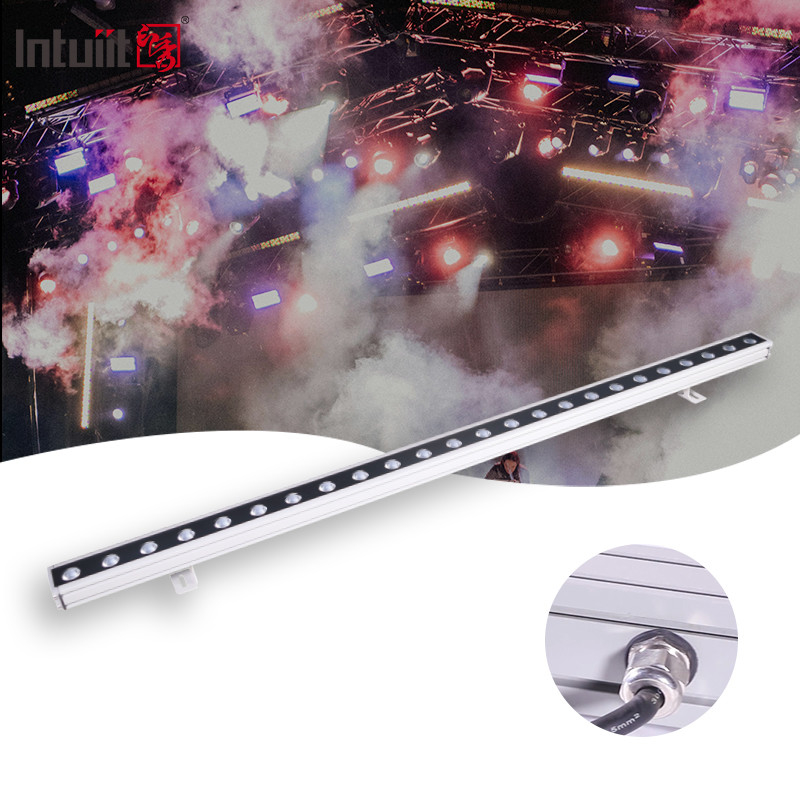

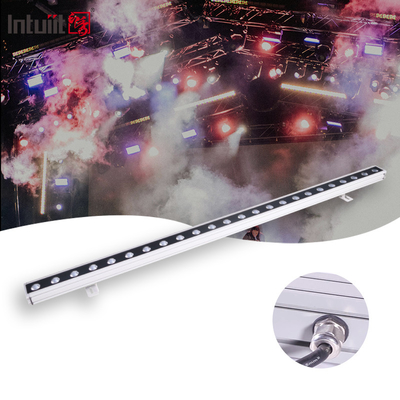

2. Effect show
3. FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
