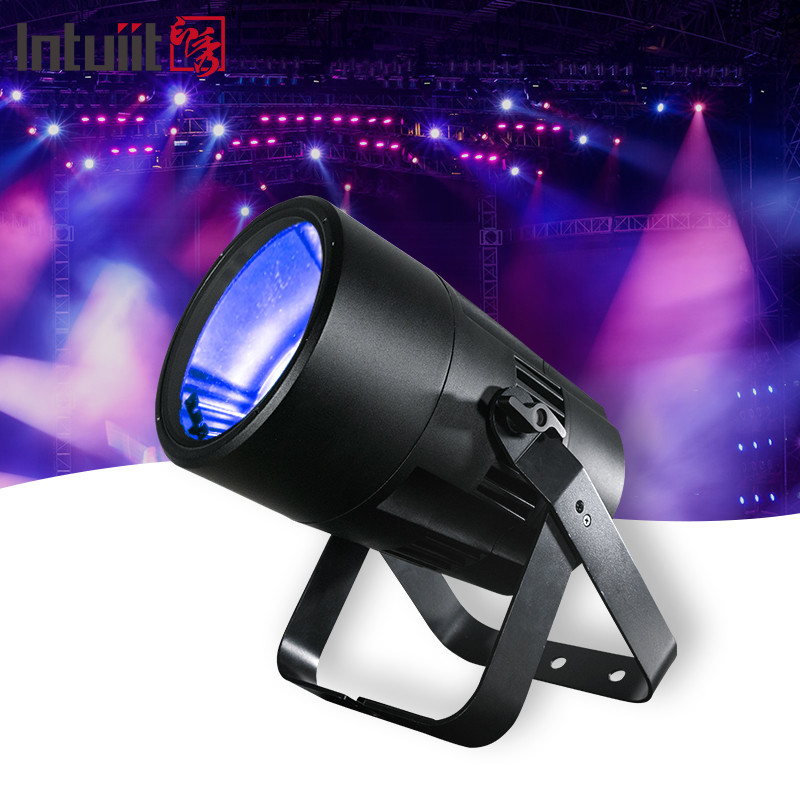

Waterproof 200W RGBW 4in1 DMX Led Cob Zoom Outdoor Events Stage Par Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | YX-200P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | 150W COB 4-in-1 RGBW LED |
|---|---|---|---|
| Lamp Power: | 160W | Input Voltage: | AC100V-240V |
| IP Rate: | IP65 | Warranty: | 1-year |
| N.W.: | 5.8kg | ||
| Highlight: | 200W Led Cob Zoom Par Light,DMX Led Cob Zoom Par Light,Waterproof Led Cob Zoom Par Light |
||
Product Description
YX-200P: DMX512 Outdoor COB LED Stage Lighting
Overview:
- It features RGBW 200W COB LED technology, offering exceptional color mixing capabilities. The fixture has configurated superior optical system.It also have rich angles for different application.Color change is natural, with better color mixing.meanwhile, it also have single white LED type optional.
Key Features:
- LED Type: RGBW 200W COB
- Color Options: Warm White, Cool White, Bli-White
- Zoom Functionality: Adjustable beam angle from 10° to 55°
Function:
- Zoom
- High CRI
- Display backlight
- Anto running
- Built-in program

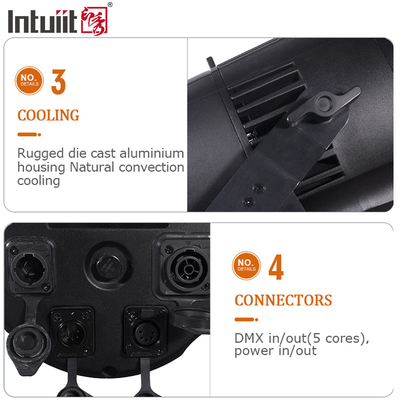

The housing of the YX-200P is crafted from proprietary tooling, ensuring optimal construction and durability. It includes an efficient heat sink, facilitating effective cooling and preventing overheating during extended use.

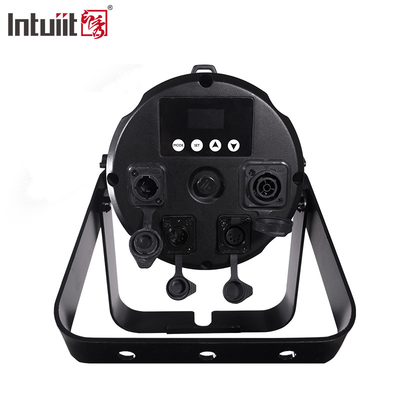

Connectivity:
- The YX-200P offers flexible connectivity options, allowing customers to choose between:
- Cable type connectors
- Seetronic exterior socket types for POWER & DMX in/out
Applications:
- This fixture can be widely used in theme park,theme town and other places.
For those looking to enhance their stage lighting experience, the YX-200P stands out as a reliable and effective choice in the LED stage lighting market.
Specification
| Product name | 200W COB ZOOM Stage LED Par | |||||
| Item Number | YX-200P | |||||

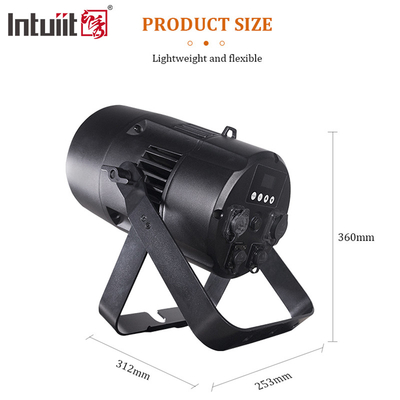

| size of the product | 312*253*360MM | |||||
| size of the inner box | 525*375*300MM | |||||
| size of the master carton | 555*405*640MM | |||||
| QTY | 2PCS/CTN | |||||
| NW | 5.7Kg | |||||
| GW | 7KG | |||||
| housing | die casting magnesium | |||||
| connectors | DMX in/out(5pin),power in/out | |||||
| cooling | with fan | |||||
| voltage | AC100-240V/60-50HZ | |||||
| max power | 170W/AC100V | 160W/AC240V | ||||
| PF | 0.972/AC100V | 0.778/AC240V | ||||
| input currect | 1.756A/AC100V | 0.852A/AC240V | ||||
| power linking | 7pcs/AC100V | 14pcs/AC240V | ||||
| LED | 200W 4-in-1 RGBW COB | |||||
| driver current | 2.3A | |||||
| dimmer | 0-100% | |||||
| strobe | 0-20Hz | |||||
| beam angle | beam angle | 10 - 33degree | spot angle | 23 - 57degree | ||
| flux | 1865 - 2511(lm) | |||||
| protocol | DMX512 | |||||
| DMX channel | 5/6/7/11 CH | |||||
| display | OLED display | |||||
| IP rate | IP65 | |||||
| working temperature | -15℃～45℃ | |||||
| distance | W color temperature | F | R | G | B | W |
| 1m | 5226 | 39500 | 5950 | 13530 | 2180 | 15520 |
| 2m | 5213 | 9770 | 1330 | 3333 | 550 | 5134 |
| 3m | 5214 | 4161 | 555 | 1435 | 232 | 2213 |
| 4m | 5202 | 2250 | 307 | 800 | 132 | 1220 |
| 5m | 5194 | 1405 | 185 | 450 | 82 | 756 |
| distance | W color temperature | F | R | G | B | W |
| 1m | 5454 | 5600 | 800 | 1980 | 320 | 2840 |
| 2m | 5431 | 1580 | 205 | 560 | 96 | 824 |
| 3m | 5435 | 736 | 92 | 263 | 46 | 386 |
| 4m | 5430 | 424 | 52 | 152 | 27 | 223 |
| 5m | 5420 | 285 | 38 | 108 | 18 | 151 |
Optic:
Installation:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
