DMX RGBW Color Changing 14x10w Wash Bar Light IP65 Led Wall Washer Outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
| Highlight: | 14x10w led wall washer,IP65 led wall washer,DMX led wall washer |
||
Product Description
CT-002P Stage LED Light Bar Features
Product Overview

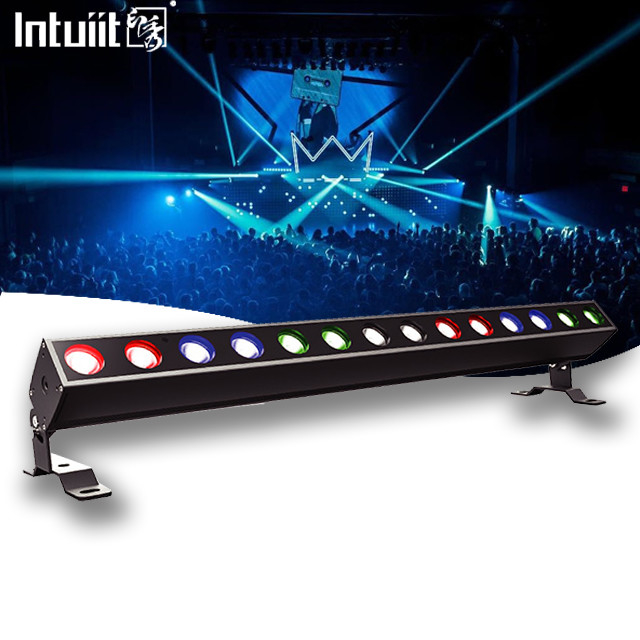

The CT-002P Stage LED Light Bar is engineered for versatility and performance in outdoor and stage lighting applications. With its high output and advanced features, it is the perfect solution for creating vibrant and dynamic lighting experiences.
Key Features
- IP65 Rated for Outdoor Use:
- Durable die-casting aluminum housing ensures it can withstand the elements, making it ideal for outdoor events and installations.
- Vibrant Colors and Excellent Color Mixing:
- 140W Output: Equipped with 14pcs of 10W RGBW 4-in-1 LEDs.
- Natural Color Transitions: Pixel independently control RGBW which can present the rainbow and flowing water effect.
- Flexible Beam Angles:
- 20° and 40° Options: Achieve different lighting effects and setups based on your needs.
- Pixel Control Capability:
- Precise control over individual LEDs for intricate lighting patterns and stunning visual displays.
- Intuitive Operation:

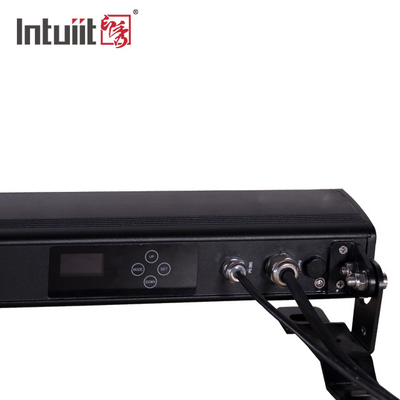

- OLED Display: User-friendly interface for easy adjustments.
- Control Panel: Features four touch buttons for quick access to settings and modes.
- Multiple Control Modes:
- Offers four control modes: Auto Running, Built-in Programs, DMX 512, and Static Color, providing flexibility for various applications.
- Durability and Reliability:
- Designed to perform reliably in challenging outdoor conditions thanks to its IP65 rating.
- Applications
- This fixture can be specialized in rental company,studio,auditorium, bar, and other places, widely used in thefootlight of stage performance, rim light of stage.
Summary
The CT-002P Stage LED Light Bar stands out as a robust and versatile lighting solution, offering exceptional color mixing, precise pixel control, and durability for a variety of outdoor and stage lighting needs. Whether for professional use or creative projects, it delivers outstanding performance and reliability.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

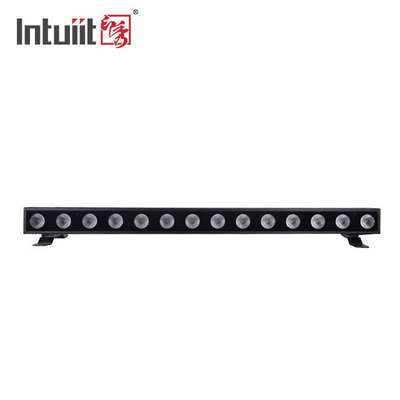

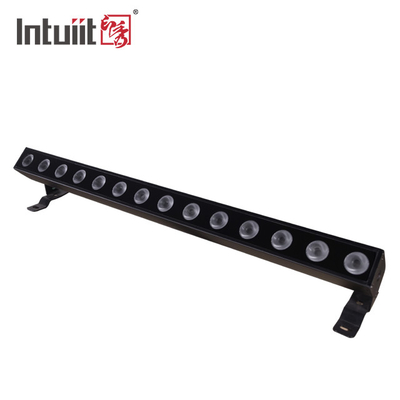

Appearance

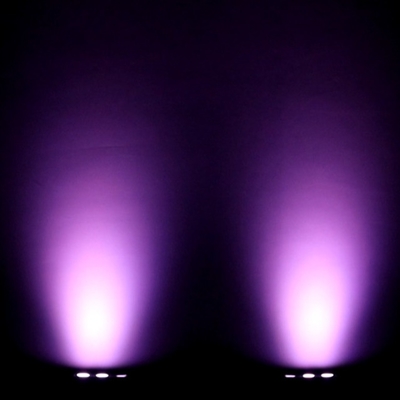

Light Distribution Data

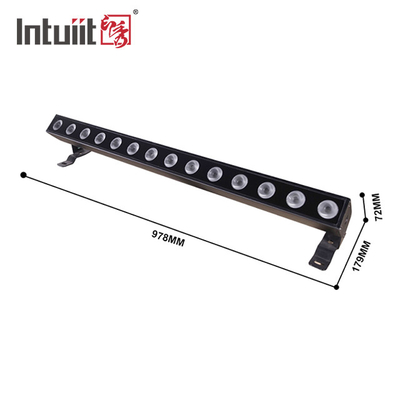

Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
