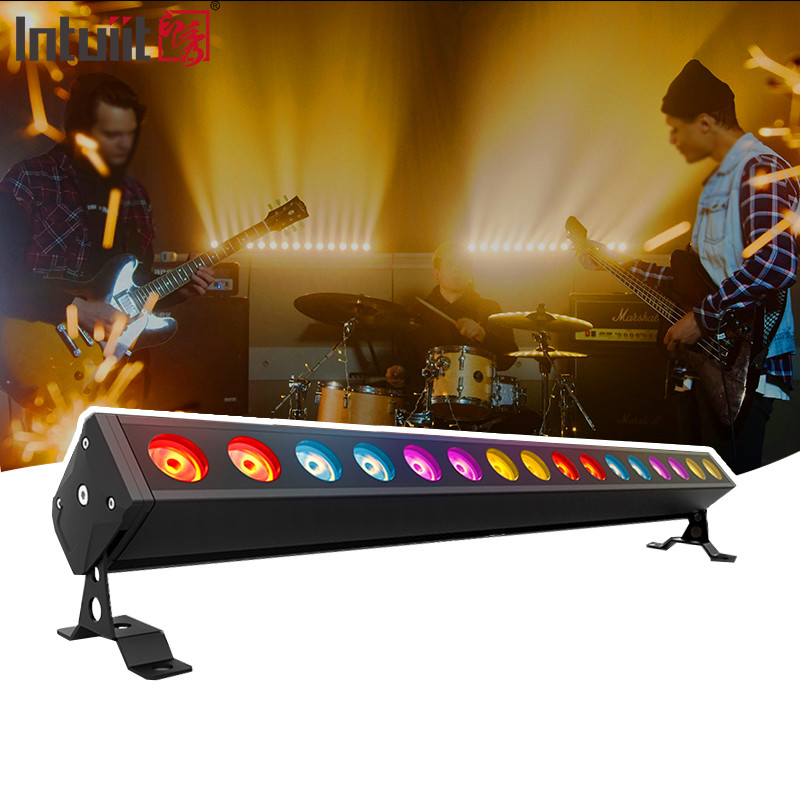

16x5w Led Wall Wash Outdoor Lighting Bar 4in1 With Dmx512 Lights 9CH Channel
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | TPL-128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T (30% deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Bar Light | Max. Power: | 82W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 60Hz/50Hz | Light Source: | RGBW 4-in-1 LED |
| IP Grade: | IP65 | Warranty: | 1 Year |
| DMX Channel: | 4/6/9CH | Leds: | 16 |
| N.W.: | 6.2kg | G.W.: | 6.5kg |
| Highlight: | 16x5w Led Wall Wash,Building Exterior Led Wall Wash,Outdoor Lighting Bar Led Wall Wash |
||
Product Description

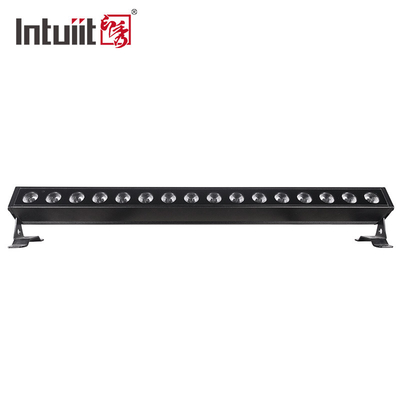

The TPL-128 LED light bar is a versatile and robust outdoor lighting solution, boasting a range of impressive features:
Key Features
-
IP65 Rating:
- Highly resistant to dust and water, ideal for challenging outdoor conditions.
-
Durable Construction:
- Made with die-cast aluminum housing, ensuring longevity and resilience against the elements.
-

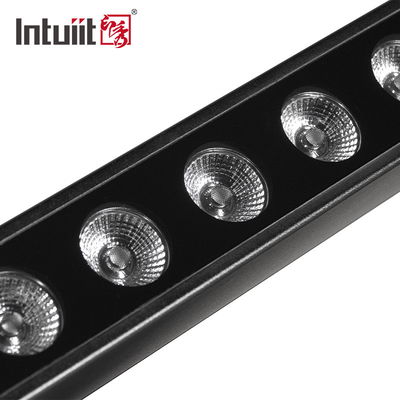

RGBW 4-in-1 LEDs:
- Offers vibrant and dynamic lighting effects with seamless color blending for creative displays.
-
Adjustable Beam Angles:
- Two beam angles (20° and 40°) allow for customizable lighting configurations to meet specific needs.
-

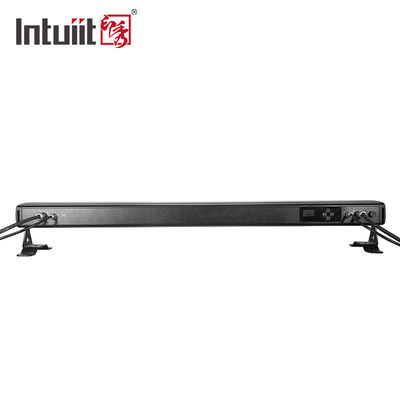

OLED Display and Intuitive Controls:
- Equipped with an OLED display and four responsive touch buttons for easy operation and adjustments.
-
16-bit Dimming:
- Provides high-resolution dimming for smooth transitions and precise control of lighting effects during performances.
-
Versatile Applications:
- Suitable for various settings, including rental companies, studios, auditoriums, bars, and other venues where stage performance or accent lighting is essential.
Conclusion
Overall, the TPL-128 LED light bar is a well-designed, feature-rich lighting solution that excels in delivering vibrant, adjustable, and durable lighting performance, particularly in outdoor environments. Its versatility makes it an excellent choice for a wide range of applications.
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : TPL-128 |
| Light source: LED | Wire:rubber cable |
| Application : STAGE, OUTDOOR INDOOR | Housing color:Black |
| Type: | TPL-128 | ||
| Rated power: | 82W | Rated Voltage: | AC100-240V/60-50HZ |
| Control Mode: | DMX512 | Color: | RGBW |
| Beam Angle : | 40°,20°optional | Cooling type: | Natural convection cooling |
| Product Size : | 1008*145*145mm | IP Rate: | IP65 |
| N.W: | 6.2KG | Channel: | 4,6,9CH |
| LED : | Prolight RGBW 5W | Permitted Ambient Temperatur: | -20~+45 |
Optical Parameter
Product's Dimension
Installation Diagram

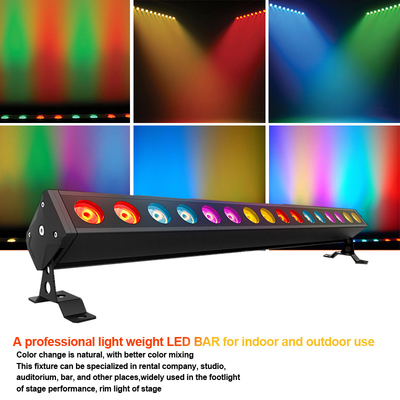

Effect Display
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
