Waterproof LED Zoom COB Par 200W RGBW 4in1 Light High Brightness For Church Theater Wedding
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | YX-200P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | 150W COB 4-in-1 RGBW LED |
|---|---|---|---|
| Lamp Power: | 160W | Input Voltage: | AC100V-240V |
| IP Rate: | IP65 | Warranty: | 1-year |
| N.W.: | 5.8kg | ||
| Highlight: | 200W LED Zoom COB Par,High Brightness LED Zoom COB Par,Waterproof LED Zoom COB Par |
||
Product Description
YX-200P: DMX512 Outdoor COB LED Stage Lighting
Overview
The YX-200P is a cutting-edge DMX512 outdoor COB LED stage light featuring RGBW 200W COB LED technology. This advanced fixture excels in color mixing, thanks to its superior optical system and versatile beam angles. The color transitions are smooth and natural, with the option for a single white LED type available.
Key Features
- LED Type: RGBW 200W COB
- Color Options:
- Warm White
- Cool White
- Bli-White
- Zoom Functionality: Adjustable beam angle from 10° to 55°
Functions
- Zoom
- High CRI (Color Rendering Index)
- Display Backlight
- Auto Running
- Built-in Program
The YX-200P's housing is crafted from proprietary tooling, ensuring optimal construction and durability. It features an efficient heat sink for effective cooling, preventing overheating during prolonged use.
Connectivity
The YX-200P provides flexible connectivity options, allowing users to choose between:
- Cable Type Connectors
- Seetronic Exterior Socket Types for POWER & DMX In/Out
Applications
This fixture is ideal for a variety of settings, including:
- Theme Parks
- Theme Towns
- Concerts and Events
For those seeking to elevate their stage lighting experience, the YX-200P is a reliable and effective choice in the LED stage lighting market.
Specification
| Product name | 200W COB ZOOM Stage LED Par | |||||
| Item Number | YX-200P | |||||

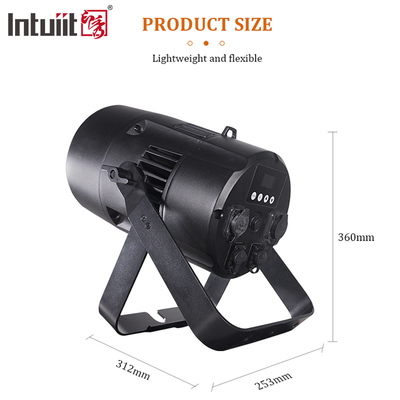

| size of the product | 312*253*360MM | |||||
| size of the inner box | 525*375*300MM | |||||
| size of the master carton | 555*405*640MM | |||||
| QTY | 2PCS/CTN | |||||
| NW | 5.7Kg | |||||
| GW | 7KG | |||||
| housing | die casting magnesium | |||||

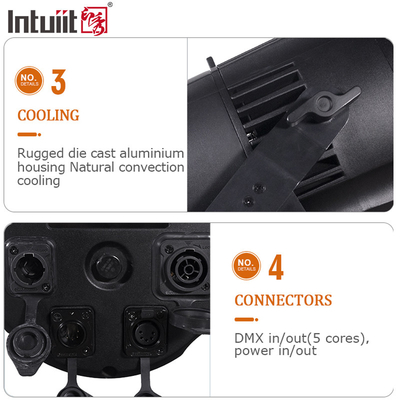

| connectors | DMX in/out(5pin),power in/out | |||||
| cooling | with fan | |||||
| voltage | AC100-240V/60-50HZ | |||||
| max power | 170W/AC100V | 160W/AC240V | ||||
| PF | 0.972/AC100V | 0.778/AC240V | ||||
| input currect | 1.756A/AC100V | 0.852A/AC240V | ||||
| power linking | 7pcs/AC100V | 14pcs/AC240V | ||||
| LED | 200W 4-in-1 RGBW COB | |||||
| driver current | 2.3A | |||||
| dimmer | 0-100% | |||||
| strobe | 0-20Hz | |||||
| beam angle | beam angle | 10 - 33degree | spot angle | 23 - 57degree | ||
| flux | 1865 - 2511(lm) | |||||
| protocol | DMX512 | |||||
| DMX channel | 5/6/7/11 CH | |||||

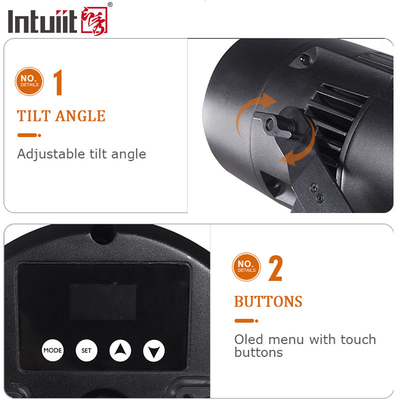

| display | OLED display | |||||
| IP rate | IP65 | |||||
| working temperature | -15℃～45℃ | |||||
| distance | W color temperature | F | R | G | B | W |
| 1m | 5226 | 39500 | 5950 | 13530 | 2180 | 15520 |
| 2m | 5213 | 9770 | 1330 | 3333 | 550 | 5134 |
| 3m | 5214 | 4161 | 555 | 1435 | 232 | 2213 |
| 4m | 5202 | 2250 | 307 | 800 | 132 | 1220 |
| 5m | 5194 | 1405 | 185 | 450 | 82 | 756 |
| distance | W color temperature | F | R | G | B | W |
| 1m | 5454 | 5600 | 800 | 1980 | 320 | 2840 |
| 2m | 5431 | 1580 | 205 | 560 | 96 | 824 |
| 3m | 5435 | 736 | 92 | 263 | 46 | 386 |
| 4m | 5430 | 424 | 52 | 152 | 27 | 223 |
| 5m | 5420 | 285 | 38 | 108 | 18 | 151 |
Optic:
Installation:
