LED Wall Washer Light 14x10W RGBW Color Outdoor Light Waterproof For Advertising Boards, Billboard,Building Commercial Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | LED Qty: | 14*10W 4-IN-1 RGBW |
|---|---|---|---|
| Input Voltage: | AC100-240V, 60Hz/50Hz | IP Grade: | IP65 |
| Warranty: | 1 Years | Beam Angle: | 15°*45° |
| Channel: | 4/6/8/56CH | Material: | Aluminum Alloy |
| Size: | 978*141*179mm | Fuction: | Auto Run.User-Defined |
| Weight: | 6.2kg | Dimming: | 16Bit |
| Highlight: | Outdoor LED Wall Washer Light,Building LED Wall Washer Light,Waterproof LED Wall Washer Light |
||
Product Description
Durability and Rating
- IP65 Rated: IP65 waterproof rating to insure this bar light fixture can work in any bad weather or environment.
- Material: Constructed with a robust die-cast aluminum housing.
Lighting Specifications
- LED Configuration: Equipped with 14 x 10W RGBW 4-in-1 LEDs,High Brightness RGBW Color for Large Area Lighting
- Color Mixing: Offers vibrant colors and excellent color mixing capabilities.
- Beam Angles: Available in 15*45degree options for versatile lighting setups.
Control Features
- Pixel Control: Allows for precise control over individual LEDs, enabling intricate lighting patterns.
- User Interface: Comes with an OLED display and touch button controls for intuitive operation.
Dimming Capabilities
- 16-bit Dimming: Provides smooth and accurate control of lighting intensity.
Application Versatility
- Widely Applications:this LED RGBW bar lighting can be used indoor and outdoors for wall,landscape,garden,hotels,billboard and building commercial lighting.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 25°*45° |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

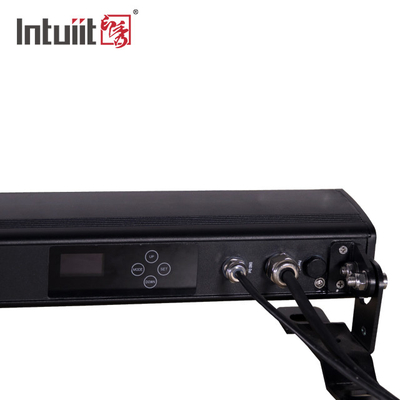

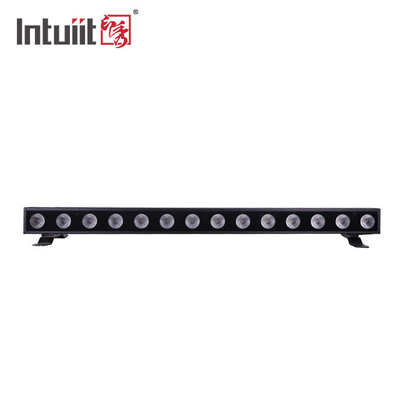

Appearance
Light Distribution Data

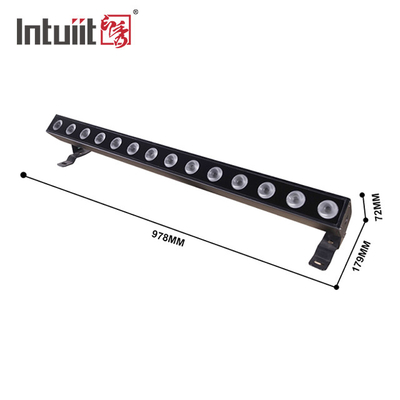

Product's Dimension
Installation Diagram
