14x10W RGBW 4in 1 LED Wall Washer DMX Control LED Strip Light Professional Stage Party DJ Disco Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
| Highlight: | DMX Control LED Wall Washer,Professional Stage LED Wall Washer,14x10W LED Wall Washer |
||
Product Description
The CT-002P Stage LED Light Bar is an exceptional lighting solution designed specifically for outdoor use, boasting an IP65 rating for protection against dust and water. Here’s a detailed overview of its key features:
Key Features
-
Durable Design:
- Constructed with die-casting aluminum, the CT-002P is not only robust but also features a sleek and attractive design that fits well in various stage and outdoor applications.
-
Powerful LEDs:
- Equipped with 14 pieces of 10W RGBW 4-in-1 LEDs, this light bar delivers vibrant colors and excellent color mixing, allowing for dynamic lighting effects.
-
Beam Angle Options:
- Offers flexibility with beam angles of 20 degrees and 40 degrees, enabling different lighting setups and effects tailored to specific needs.
-
Pixel Control Capability:
- Precise control over individual LEDs allows for the creation of intricate lighting patterns and stunning visual displays, enhancing creativity in lighting designs.
-
User-Friendly Interface:

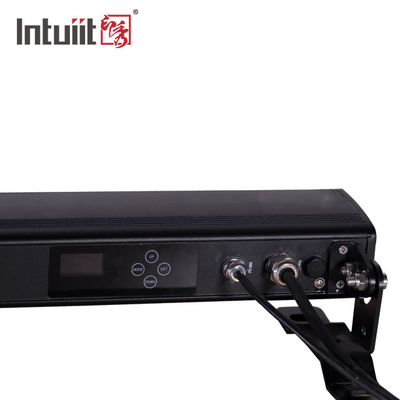

- Features an OLED display and a control panel with four touch buttons for intuitive operation, making it easy to adjust settings and select lighting modes.
-
16-Bit Dimming:
- Provides smooth and precise control over lighting intensity, ensuring seamless transitions and accurate lighting levels.
-
Outdoor Durability:
- Designed to withstand challenging outdoor conditions, making it suitable for stage performances, outdoor events, and architectural lighting projects.
Applications
The CT-002P is versatile and reliable, making it an excellent choice for:
- Stage Performances
- Outdoor Events
- Architectural Lighting Projects
- Theatrical Productions
Conclusion
Overall, the CT-002P Stage LED Light Bar stands out for its exceptional color mixing capabilities, precise control, and robust design, making it ideal for a wide range of lighting applications in outdoor settings.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

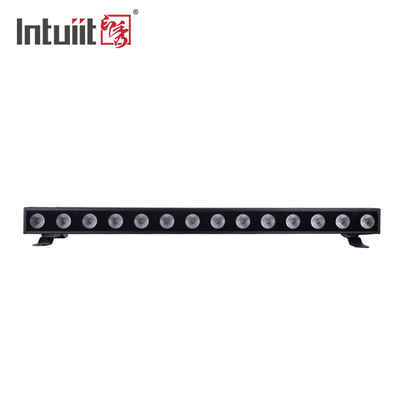

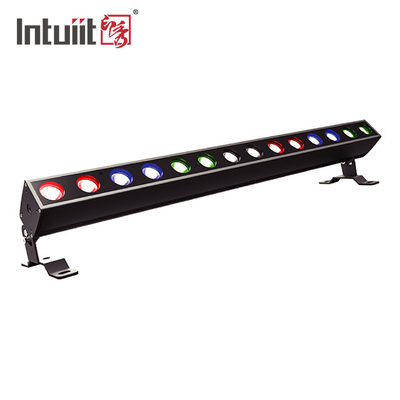

Appearance
Light Distribution Data

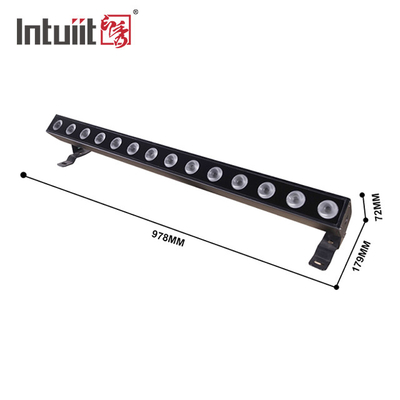

Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
