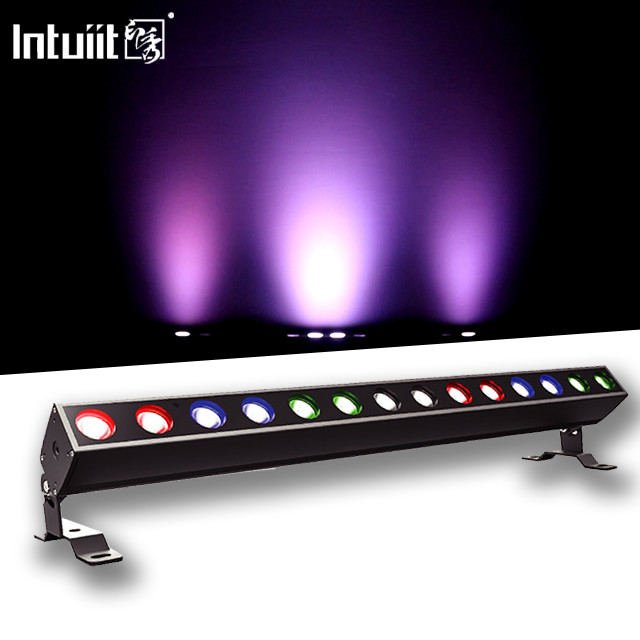

14X10W RGBW LED Pixel Batten Stage Light With Background Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer | Power: | 140W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 50-60Hz | IP Grade: | IP65 |
| Warranty: | 1 Years | CCT: | 3000K |
| Beam Angle: | 15*45° | Channel: | 4/6/8/56CH |
| Light Color: | RGBW | Material: | Aluminum Alloy |
| Size: | 978*141*179mm | Weight: | 6.2kg |
| Highlight: | 14X10W LED Pixel Batten Stage Light,RGBW LED Pixel Batten Stage Light |
||
Product Description
CT-002P IP65 Stage LED Light Bar
Overview
The CT-002P is an IP65 rated Stage LED Light Bar designed specifically for outdoor applications. Its durable die-cast aluminum housing combines functionality with a sleek design, making it ideal for various stage and outdoor lighting scenarios.
- Key Features
- Durable Construction
- Waterproof IP65 Rating:IP65 waterproof rating ensures reliable performance in outdoor DJ parties and stage events.
- Die-Casting Aluminum Housing: Provides durability while maintaining a sleek aesthetic.
- Lighting Performance
- 14pcs of 10W RGBW 4-in-1 LEDs: Offers vibrant colors and excellent color mixing capabilities for dynamic lighting effects.
- Beam Angle Options: Adjustable beam angles of 20° and 40° for flexibility in lighting setups.
- Pixel Control Capability
- Individual LED Control: Allows for precise control over each LED, enabling stunning visual displays and intricate lighting patterns.
- User-Friendly Interface

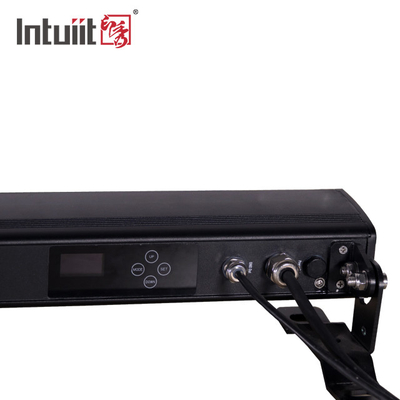

- OLED Display and Control Panel: Features a control panel with four touch buttons for intuitive operation.
- Easy Settings Adjustment: Conveniently adjust settings, select lighting modes, and control various parameters directly from the light bar.
- Advanced Dimming
- 16-bit Dimming: Provides smooth and precise control over lighting intensity, allowing for seamless transitions and accurate lighting levels.
- Applications
- This fixture can be specialized in rental company,studio.auditorium, bar, and other places, widely used in thefootlight of stage performance, rim light of stage.
- Conclusion
- The CT-002P Stage LED Light Bar is a versatile and reliable lighting solution for outdoor use. With exceptional color mixing capabilities, precise control, and robust construction, it ensures captivating and dynamic visual experiences across various lighting applications.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

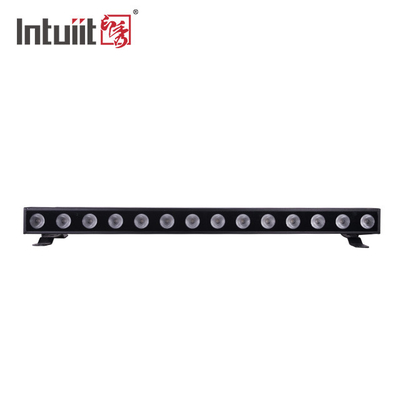

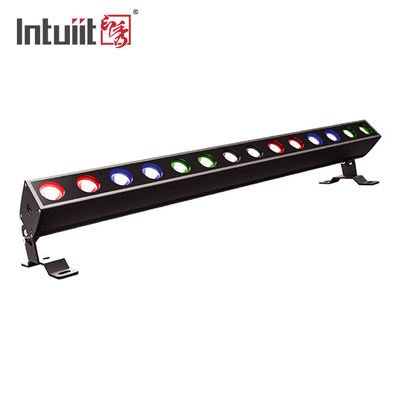

Appearance

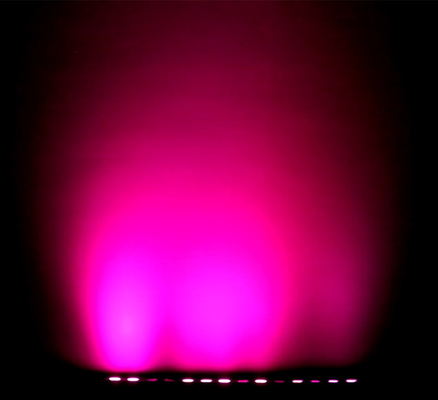

Light Distribution Data

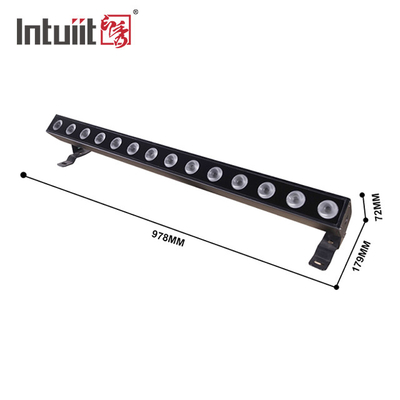

Product's Dimension
Installation Diagram
