IP65 Waterproof Outdoor Lighting 16x5w Pixel Bar Led Wall Washer Wash Light Aluminum Lamp Body
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | TPL-128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T (30% deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Bar Light | Max. Power: | 82W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 60Hz/50Hz | Light Source: | RGBW 4-in-1 LED |
| IP Grade: | IP65 | Warranty: | 1 Year |
| DMX Channel: | 4/6/9CH | Leds: | 16 |
| N.W.: | 6.2kg | G.W.: | 6.5kg |
Product Description
The TPL-128 LED light bar is a versatile outdoor lighting fixture known for its outstanding features:
Key Features
-
Durability:
- IP65 Rating: Resistant to dust and water, suitable for challenging weather conditions.
- Die-Cast Aluminum Housing: Enhances durability and longevity.
-
Lighting Capabilities:
- RGBW 4-in-1 LEDs: Produces vibrant, dynamic lighting with seamless color blending.
- Adjustable Beam Angles: Two options (20° and 40°) for focused or expansive coverage.
-
User-Friendly Operation:
- OLED Display: Provides clear feedback and information.
- Intuitive Control Panel: Features four responsive touch buttons for easy adjustments.
-
Brightness Control:
- 16-Bit Dimming: Ensures smooth transitions and precise lighting effects, ideal for performances.
Applications
The TPL-128 is ideal for outdoor projects, including:
- Building façades
- Stages
- Events
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : TPL-128 |
| Light source: LED | Wire:rubber cable |
| Application : STAGE, OUTDOOR INDOOR | Housing color:Black |
| Type: | TPL-128 | ||
| Rated power: | 82W | Rated Voltage: | AC100-240V/60-50HZ |
| Control Mode: | DMX512 | Color: | RGBW |
| Beam Angle : | 40°,20°optional | Cooling type: | Natural convection cooling |
| Product Size : | 1008*145*145mm | IP Rate: | IP65 |
| N.W: | 6.2KG | Channel: | 4,6,9CH |
| LED : | Prolight RGBW 5W | Permitted Ambient Temperatur: | -20~+45 |
Optical Parameter

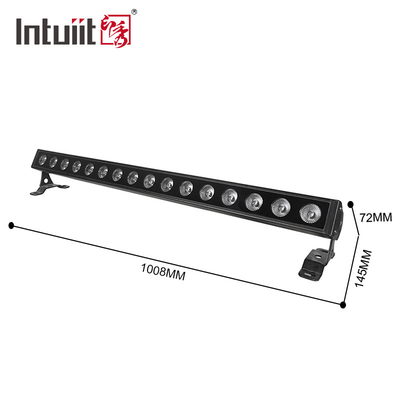

Product's Dimension
Installation Diagram
Effect Display
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
