18x8W Led Wall Washer Outdoor Lighting Bar 4in1 With Dmx512 Lights For Building Exterior
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | MYLED-101 |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 50Pcs |
|---|---|
| Packaging Details: | Inner box+ Master Carton |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T IN ADVANCE (30% deposit, 70% balance before delivery) |
|
Detail Information |
|||
| Light Source: | 18Pcs*8W RGBW 4-in-1 LED | Power Consumption: | 120W |
|---|---|---|---|
| Work Voltage: | AC100-240V,60Hz/50Hz | Color Tempreture: | RGBW(W:6000K) |
| IP Grade: | IP65 | Warranty: | 2 Years |
| N.W.: | 8.5kg | Lumen: | 3258lm |
| Highlight: | Dmx512 led wall washer,18x8W led wall washer,Outdoor led wall washer |
||
Product Description

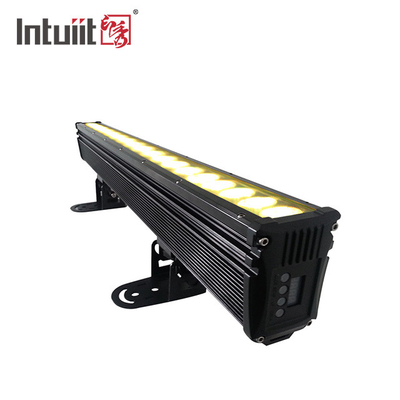

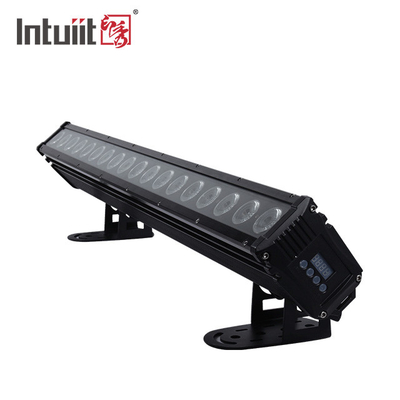

The MYLED-101 is a Outdoor Wall Washer.
Key Features
High Power Output
18 Pcs * 10W RGBW 4-in-1 LEDs: Seven colors can be flexibly adjusted,
present rainbow water effect.
Durability
IP65 Rated: Waterproof and dustproof, making it suitable for outdoor environments.
Beam Angle Options
Standard Beam Angle: 15° /25 ° optional
Adjustable Beam Angles: 25° and 45° achievable with diffusion filters.
Control and Operation
DMX Control: 6 sections for flexible operation.
LED Display: User-friendly interface for easy setup and adjustments.
Construction
Die-Casting Aluminum Housing: Ensures durability and efficient heat dissipation.
Applications
Widely used for Cultural tourism market, theme park,Characteristic town, etc.
Technical Data
| Item No. | MYLED-101 |
| Light Source | 18Pcs RGBW 4-in-1 LD |
| Power Consumption | 120W |
| Work voltage | AC100-240V, 60Hz/50Hz |
| Beam angle | 15/25 Degree (40°, 20*40° for optional) |
| Control Protocal | DMX512 |
| DMX Channels | 3,6,24CH |
| Product's dimension |
1027*170*222mm |
| IP Grade | IP65 |
| Net Weight | 8.5kg |
Effect

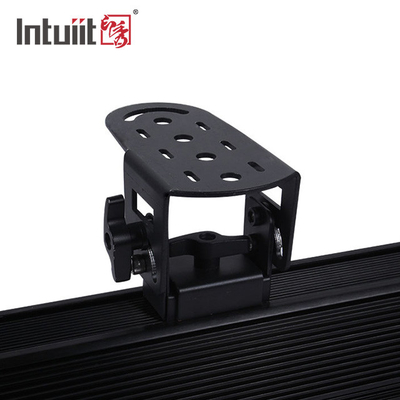

Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
