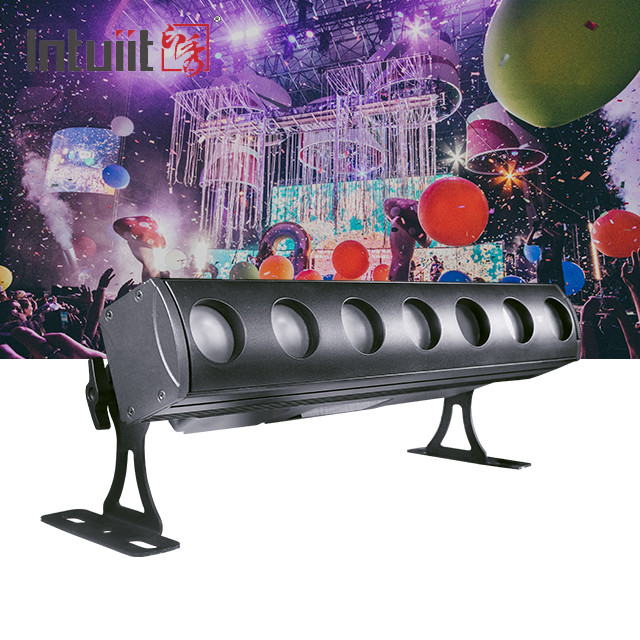

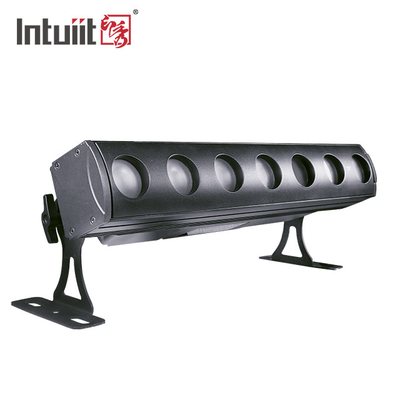

7x15W LED RGBW Waterproof Outdoor Stage Pixel Bar Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-001P-0.5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 50Pcs |
|---|---|
| Packaging Details: | Inner box+ Master Carton |
| Delivery Time: | 25-35Days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Wall Wash Bar | Light Source: | RGBW 4-in-1 LED |
|---|---|---|---|
| Max. Power: | 100W | Input Voltage: | AC100-240V, 50-60Hz |
| IP Grade: | IP65 | Warranty: | 1 Year |
| Highlight: | RGBW LED Stage Pixel Bar Light,7x15W LED Stage Pixel Bar Light,Waterproof LED Stage Pixel Bar Light |
||
Product Description
CT-001P-0.5M Professional Stage LED Light Bar
Overview
The CT-001P-0.5M is a high-performance LED light bar designed for professional stage and event lighting. Combining durability, advanced features, and versatile functionality, it’s the perfect choice for stages, theaters, churches, and various events.
Product Specifications
-
Model: CT-001P-0.5M
-
Length: 0.5 meters
-
LED Type: 7 x 15W RGBW 4-in-1
-
Max Power: 100W
-
Beam Angles:
-
Narrow: 4.5°
-
Optional Diffusion Filters: 20°, 40°, 20x40°
-
-
IP Rating: IP65 (waterproof)
-
Housing Material: Die-cast magnesium alloy + tensile aluminum
-
Control:
-
DMX & RDM compatible
-
5-pin (3-pin) Seetronic DMX and PowerCon in/out sockets
-
-

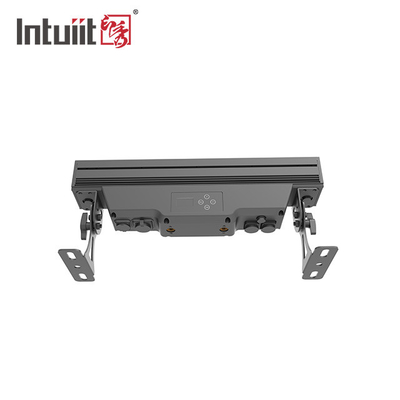

Display: OLED with 4-touch button control panel
-
Dimming: 16-bit smooth dimming
Key Features
1. Durable Design
-
Built with high-quality materials for longevity and reliable performance in demanding environments.
2. Excellent Color Mixing
-
7 x 15W RGBW 4-in-1 LEDs: Delivers vibrant colors and seamless color blending for stunning visual effects.
3. Versatile Beam Control
-
Adjustable Beam Angles: Easily switch between narrow (4.5°) and wide (20°, 40°, 20x40°) beams using diffusion filter lens kits.
4. User-Friendly Interface
-
OLED Display + 4-Touch Buttons: Simplifies operation and setup, allowing quick adjustments to lighting settings.
5. Smooth Dimming
-
16-bit Dimming: Enables ultra-smooth transitions and precise brightness control for dynamic lighting effects.
Ideal Use Cases
The CT-001P-0.5M is perfect for:
-
Stage Productions: Enhances lighting design for concerts, performances, and live events.
-
Theater Performances: Provides dynamic lighting for dramatic and immersive effects.
-
Church Services: Creates an engaging atmosphere for worship and special events.
Why Choose the CT-001P-0.5M?
The CT-001P-0.5M is designed to meet the demands of professional lighting environments. With its durable construction, vibrant color mixing, and user-friendly controls, it delivers reliability and versatility for a wide range of applications. Whether for stage lighting, theater performances, or church services, this LED light bar ensures exceptional performance and stunning visual effects.
Technical Data
| Item No. | CT-001P-0.5M |
| Light Source | 7Pcs*15W RGBW 4-in-1 LED |
| Max. Power | 100W |
| Work Voltage | AC100-240V, 50-60Hz |
| Beam angle | 4.5Degree,8Degree (20D,40D, 20*40D by diffusion filer) |
| Luminous flux | 1265lm |
| Control Protocol | DMX512,RDM |
| DMX Channels | 4,6,8,38CH |
| IP Grade | IP65 |
| Product's dimension | 511*150*237mm |
| Net weight | 6.2KG |
Lighting Distribution Data
Product's Dimension

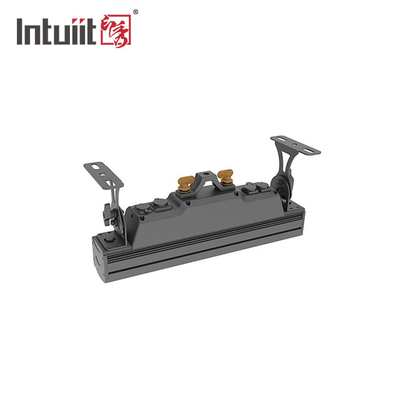

Installation Diagram
