LED Pixel Bar Light 14x15W RGBW Outdoor Club Building Decor IP65 Wall Washer
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-001P-1M |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 50Pcs |
|---|---|
| Packaging Details: | Inner box+ Master Carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% blance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Wall Wash Bar | Light Source: | RGBW Quad LED |
|---|---|---|---|
| Max. Power: | 200W | Input Voltage: | AC100-240V,50-60Hz |
| IP Grade: | IP65 | Warranty: | 1 Year |
| Highlight: | IP65 LED Pixel Bar Light,14x15W LED Pixel Bar Light,Outdoor LED Pixel Bar Light |
||
Product Description

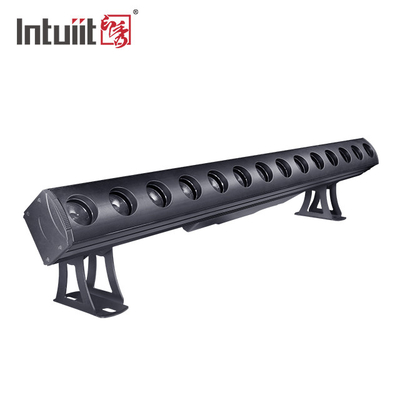

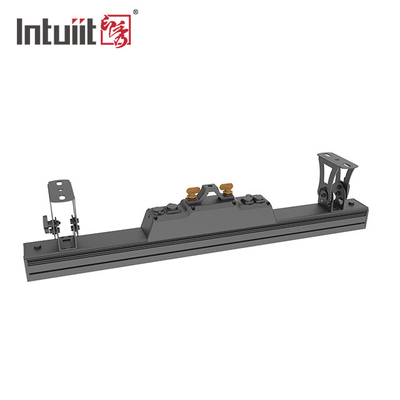

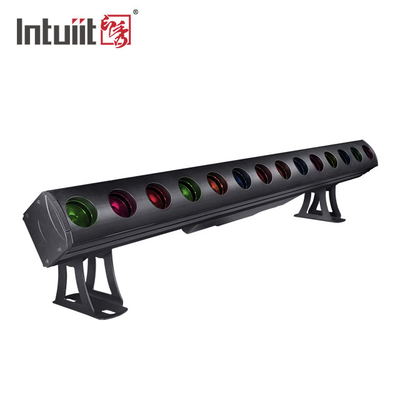

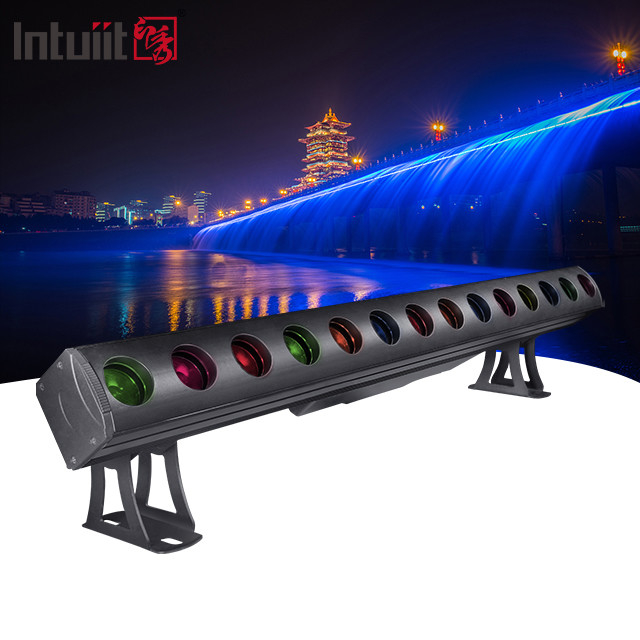

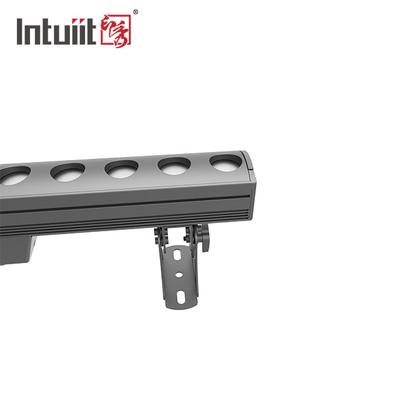

CT-001P-1M Professional Stage LED Light Bar
Overview
The CT-001P-1M is a high-performance LED light bar designed for professional stage and event lighting. Combining durability, advanced features, and versatile functionality, it’s the ultimate choice for stages, theaters, churches, and other demanding environments.
Key Features
1. High Power Output
-
14 x 15W RGBW 4-in-1 LEDs: Delivers exceptional brightness and vibrant color mixing for stunning visual effects.
2. Durable Construction
-
IP65 Rating: Waterproof and dustproof, ensuring reliable performance in both indoor and outdoor settings.
-
Premium Materials: Made from die-cast magnesium alloy and tensile aluminum, housed in a sleek, tooling-designed casing.
3. Flexible Beam Angle Options
-
Narrow Beam (4.5°): Perfect for focused lighting.
-
Adjustable Beam Angles: Easily switchable using diffusion filter lens kits (20°, 40°, and 20°x40°).
4. Advanced Control and Connectivity
-
Max Power: 200W for powerful lighting performance.
-
DMX & RDM Compatibility: Supports 5-pin (3-pin) Seetronic DMX and PowerCon in/out sockets for seamless integration.
-

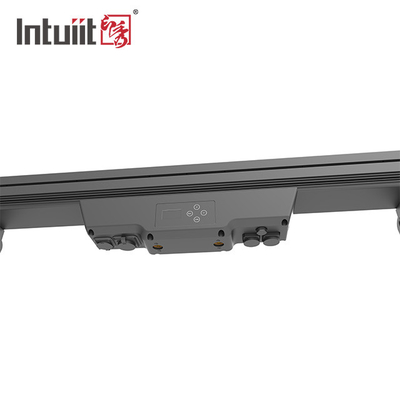

OLED Display + 4-Touch Button Panel: Provides intuitive operation and real-time adjustments.
5. Smooth Dimming and Effects
-
16-bit Dimming: Enables ultra-smooth transitions and dynamic lighting effects.
Applications
The CT-001P-1M is ideal for:
-
Stage Lighting: Perfect for concerts, theater productions, and live events.
-
Churches: Enhances worship experiences with atmospheric lighting.
-
Events and Venues: Creates stunning visual effects for weddings, parties, and corporate events.
Why Choose the CT-001P-1M?
The CT-001P-1M combines powerful output, durable design, and versatile features to meet the needs of lighting professionals. Whether for stage performances, worship settings, or special events, this LED light bar delivers exceptional performance and stunning visual effects, making it a reliable and impactful choice.
Technical Data
| Item No. | CT-001P-1M |
| Light Source | 14Pcs*15W 4-in-1 RGBW LED |
| Max. Power | 200W |
| Work voltage | AC100-240V, 50-60Hz |
| Beam angle | 4.5Degree,8Degree ( 20D, 40D, 20*40D by diffusion filter) |
| Luminous flux | 3283lm |
| Control Protocol | DMX512,RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Product's dimension | 1022*150*239mm |
| Net weight | 10.2KG |
Light Distribution Data
Product's Dimension
Installation Diagram
